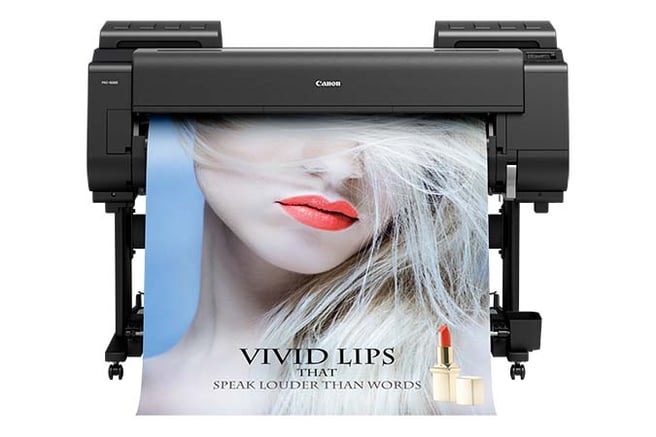

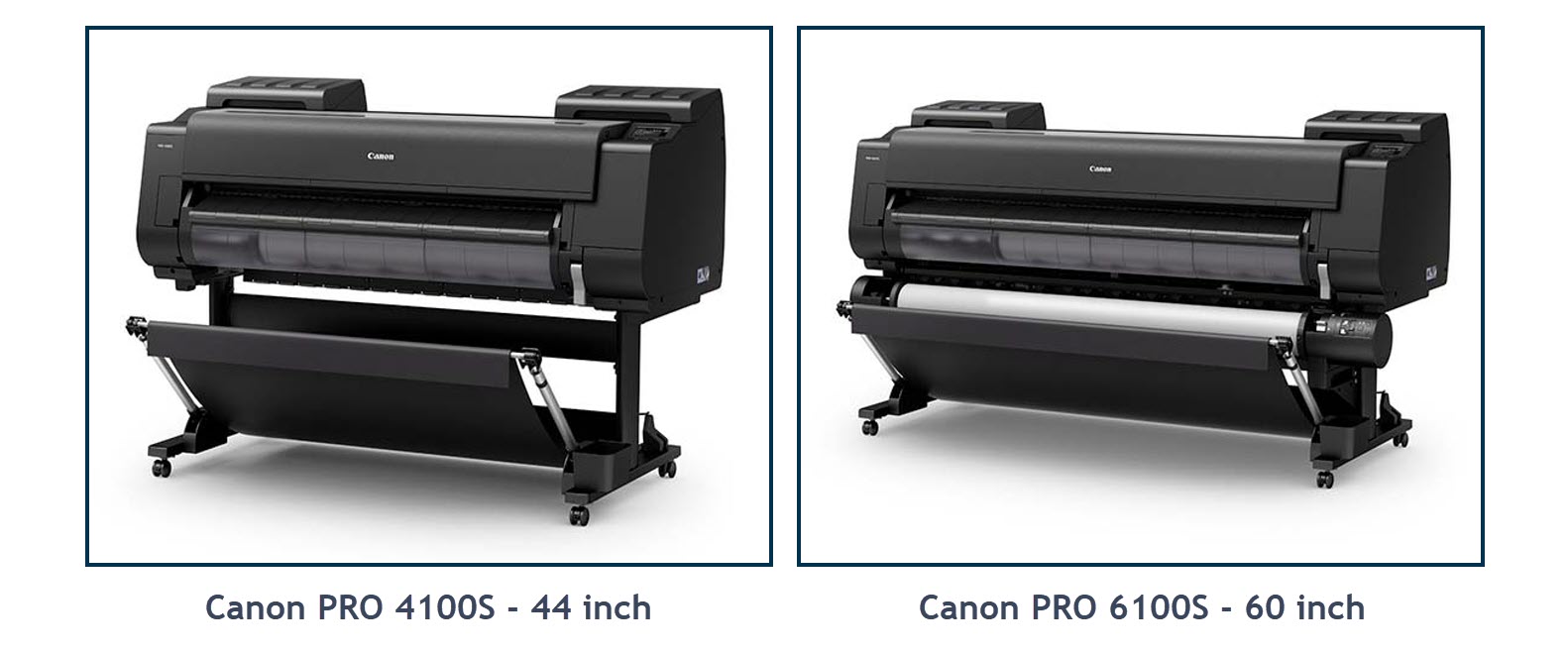

The new PRO 4100S/6100S is specially designed for high volume graphic arts print service providers that need to maximize productivity and manage color across a fleet of printers across multiple locations.
Plenty of innovation and new technologies have been packed into the CAnon PRO S-Series, including direct links to digital cameras, reformulated LUCIA PRO inks and a new print head design, and automated media loading.

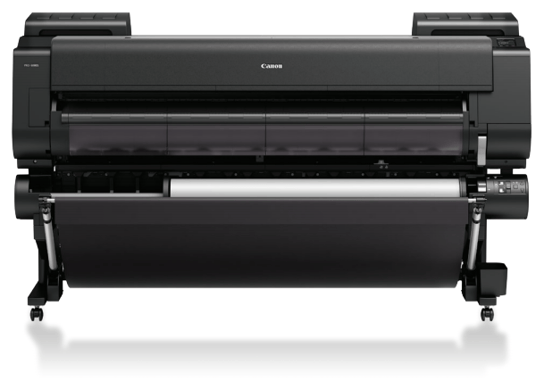

The Canon 8-color printers are designed for the poster, maps, and signage markets. Users find that the PRO 4100S and the larger PRO-6100s exceed the expectations
Ultimately, all of these new advancements lead the way for the PRO Series to completely exceed your expectations regarding a printer for large photos and graphics.
Sub-ink system: A built-in reservoir for the printer. This process ensures all the ink is used in each ink tank before needing to replace it. Also, having an internal supply of ink allows users to replace empty tanks on the fly - without having to stop the printer.
Anti-clogging technology: The PF-10 print-head with FINE technology generates fast print speeds and reduces the possibility of clogging.
New LUCIA PRO Ink: an all new ink formulation with a new microencapsulation process tht allows the inks to be even more densely laid down on the media, resulting in increased smoothness of the printed surface.
Print amazing things, quickly!
The LUCIA PRO pigment ink set. This ink was formulated to help you achieve fantastic color reproduction, image clarity, and fine details for creating vivid posters and advertising displays.
New Canon design innovations result in an ultra-quiet operation. So, it can be placed in a fully populated office without disrupting employees concentration and productivity.
What is included:
User Software CD, including: imagePROGRAF Print Driver, Driver extra kit, imagePROGRAF Status Monitor, Direct Print & Share Application, Print Plug-in for Microsoft Office, Configuration Tool, and Accounting Manager.
The Canon PRO Series large-format printers come equipped with several security features designed to help prevent leaks of confidential information:
The following functions can be disabled in administrator mode:
The PRO-Series is well suited for busy office environments as it is 60% quieter than previous imagePROGRAF printers and offers less distraction in the workplace.
The PRO-Series features a 3" color touchscreen operation panel making it easy to view printer information as well as perform simple operations.
Printing jobs quickly is critical on the work site and in the office. The Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow - perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation.
Print Head PF-10
The multi-channel PF-10 Print Head is engineered to work with the printer's high-speed carriage and high-frequency ink ejection to help facilitate fast printing. This printer boasts Canon's print-head technology that lays down ink with outstanding speed and accuracy. The PF-10 print head incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 5 picoliter-size ink droplets that help produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output (max.) with fine lines that are accurate to ±0.10% and as thin as 0.02mm.
Sub Ink Tank System
The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.
Standard with all Canon PRO Series printers is a suite of free software:
Direct Print & Share
Sharing ideas has never been easier with Canon's Direct Print & Share software. Direct Print and Share is a cloud portal and batch printing solution that helps you to expand your printing workflow. This software allows you to upload documents to your cloud account using any WebDAV compliant cloud service, and print the uploaded documents from almost anywhere. Easily share and/or print .cpfx PosterArtist, PDF, TIFF, JPEG, and HP-GL/2 files, through the user-friendly interface. In addition, you can set-up hot folders on your desktop by clicking the Shortcut Print feature. Then drag and drop the files you wish to print into these folders and the job will start automatically. You can even set up multiple folders, each with their own customized settings, allowing for multiple jobs to be run with ease. Thumbnail previews of multipage images and multipage printing of PDFs can also be done with this software.
Free Layout Plus
New! Nest, tile and create custom layouts before printing your files with this print utility. Use the plug-in feature to print directly from Microsoft Office programs.
Accounting Manager software serves as a powerful feature that can help users accurately manage printing costs and other information that is increasingly important in today's economic environment.
With the Accounting Manager software you can track how much ink and paper is being consumed when printing in large format jobs. Costs can be assigned to ink and paper to determine expenses based on your own "Cost of Goods". Each individual ink tank and each paper type can have its own cost associated to it. The user can also input a variable cost that will be added to the total of the print cost. The data is exportable to a .csv format for Microsoft Excel® so the data can be used for billing purposes. This feature will allow you to determine the cost of each print based on your actual cost.
Canon's included PosterArtist Lite poster creation software gives users the ability to quickly and easily create professional large format prints and now supports the creation of multilingual posters and tiling! Users simply follow the program's four (4) easy steps to create posters that can be used in applications such as office Presentations, Trade shows, Retail Signage, and much, much more. The PosterArtist QuickCopy* feature provides an easy solution for a CanoScan desktop scanner to be used as a copier, making letter-size flyers and documents into full-size posters with a touch of a button.
* Compatible with PosterArtist and PosterArtist Lite
Device Management Console
This software allows users to continually monitor information such as the printer status and colors being used to print. It also allows printer administrators to centrally control multiple networked printers at once. This utility software displays the acquired printer information in a neat list for easy visibility.
Printer administrators can be notified via email when an error or warning occurs. No more hassles to get to an installation site of a printer to check on the amount of ink remaining. Printer administrators can now simply check the amount of consumables remaining for networked printers by operating DMC software from their own personal computer. You can monitor the status of up to 50 TM Series printers!
Media Configuration Tool
Manage, update and arrange media information in the operation panel and printer driver.
The TM Series supports Apple AirPrint, Apple's future standard output process. This application allows users to output from various applications on mobile devices, without specialized drivers and output applications. There are currently no restrictions on file types, so it is now easier than ever to print full quality photos and documents from most Apple products including your Mac®, iPhone®, iPad®, or iPod®. It also features easy discovery, automatic media selection, and enterprise-class finishing options.
Canon Print Service
This software allows users to print from the menus of applications that support Android's printing subsystem. Print PDF files wirelessly via a mobile application for Android tablets and smart phones. In just a few simple steps you can log into the Canon Print Service application, create the JPEG file, send the JPEG file to a TM Series large-format printer and select the 'JPEG direct print' function to print your document. Simple and easy to do on-the-go!
