    Canon PlotWave 3000 & 3500

    Easy, secure, and intelligent large format technical document printing and management.

    Legendary Canon quality and performance that you can trust

    Print quickly with zero "warm up" time with Radiant Fusion Technology

    Process files 30% faster with the Windows 10 IoT POWERsync controller PC



    Canon PlotWave Series 3000-3500-7500 TAVCO

    Get Quote



    Save valuable floor space: The single-footprint form factor intelligently combines the printer, scanner, and controller PC in one compact system.

    Power through the biggest files with ease: The new Océ POWERsync controller is based on an embedded Windows 10, 64-bit architecture. With a Dual-Core, Dual-Thread processor, 500 GB hard-drive, and 4 GB of DDR4 RAM, your largest, most complex files are no match for the PlotWave 3000 or PlotWave 3500. This new platform is over 30% faster and preceding Canon wide format printer models.

    Connect from anywhere and print from anywhere: Printing from multiple locations and sources is supported by the PlotWave series. With the Publisher Mobile App, you can preview and print fles from your mobile phone or tablet. With Publisher Express, you can submit print files directly from the web. Driver Select, the printer driver for Windows, helps reduce errors and supports frst-time-right results, with its clear and easy-to-use functionality. Driver Express enables printing PostScript fles from Mac and Windows.

    Requires no warm-up time: With Océ patented Radiant Fusion Technology, the PlotWave system requires virtually no warm-up time, making it the fastest and best plotter in its class.

    Includes integrated color scanning: The new Océ Scanner Express adds color scanning functionality to the innovative Océ print engine. Now you can scan markups and annotations and recall the files with full-color integrity.

    Is rooted in green technology: The PlotWave only heats up when printing, when in idle mode, it is cold and consumes almost no energy. This makes the PlotWave series a good fit for any modern office.

    Durability: Robust technology is built to withstand the workload of multiple users.



    Canon-PlotWave-3000-3500-back-drawing-TAVCO



    Download the PlotWave 3000 - 3500 Brochure

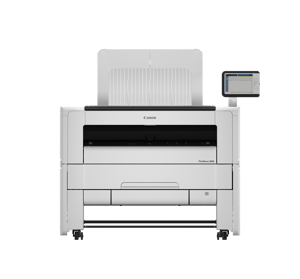

    Canon PlotWave 3000

    4 D-size sheets per minute print speed

    Plotwave3x_Front_Side

    Get Quote

    Canon PlotWave 3500

    6 D-size sheets per minute print speed

    Plotwave3x_Front_Side

    Get Quote

    Print Speed 4-D/A1 sizes per minute
    First print out time < 40 seconds
    First copy out time < 40 seconds
    Print resolution 600 x 1200 dpi
    Media capacity 1 or 2 rolls, manual feed cutsheet
    Max media capacity 2 rolls (650' L x 36" W), 3,900 sq. ft.
    Media weight Bond 16-28 lb, Film 3.5 mil
    Media types Engineering bond, vellum, recycled bond, tinted bond, Xtreme 27# bond, and polyester 3.5 mil fim
    PlotWave system size (WxDxH) 61.6" x 31.7" x 59.2" (Includes top tray)
    PlotWave system weight  485 lb (220 kg)



    Print Speed 6-D/A1 sizes per minute
    First print out time < 40 seconds
    First copy out time < 40 seconds
    Print resolution 600 x 1200 dpi
    Media capacity 1 or 2 rolls, manual feed cutsheet
    Max media capacity 2 rolls (650' L x 36" W), 3,900 sq. ft.
    Media weight Bond 16-28 lb, Film 3.5 mil
    Media types Engineering bond, vellum, recycled bond, tinted bond, Xtreme 27# bond, and polyester 3.5 mil fim
    PlotWave system size (WxDxH) 61.6" x 31.7" x 59.2" (Includes top tray)
    PlotWave system weight  485 lb (220 kg)
