Discover the
HP DesignJet XL 3600 MFP

Experience a new standard with the most immediate and robust 36-inch large-format MFP in the market

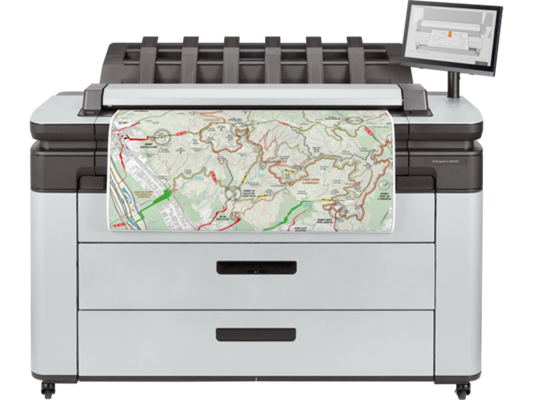

Designjet XL 3600 center facing-1

HP DesignJet XL 3600 Multifunction Printer

IT-managed enterprise and mid-size technical departments are looking to significantly improve productivity/collaboration, security, and cost optimization.

There's no more waiting when you get the fastest first page out. This MFP also provides the best network protection, is compact to fit your office, and is robust enough to meet everyone's demands.

It's time to optimize productivity and lower printing costs with a robust multifunction printer that sets a new standard for extreme reliability. Finally, you're in control of using the world's most secure large-format printers.

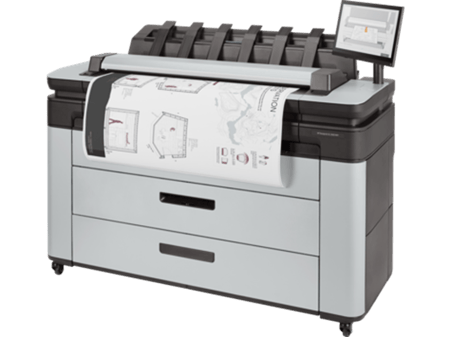

Designjet XL 3600 Left Facing - smaller-1



Fastest first page out

Don’t wait in front of your printer with the fastest first page out, in just 29 seconds.

Free up your time with radically simple and fast batch PDF printing using HP Click software.

Quickly access your personal and group folders from the 15.6-inch touchscreen, so you can print and share right away.





Experience extreme reliability

Built with the most robust design for demanding environments.

Best fit for your office with up to 30% smaller footprint and the quietest operation.

Get the lowest running costs, with mono and color prints at the same price and using up to 10X less energy.



World's most secure large-format printer

Rely on the best network protection with features like HP Secure Boot and whitelisting.

Control who accesses the printer and its confidential documents with secure user authentication.

Keep your fleet secure at any time with HP JetAdvantage Security Manager.

HP DesignJet XL 3600 Multifunction Printer

Turn your workgroups into highly efficient teams

Get a Personalized HP DesignJet XL 3600 MFP Quote

Get a bundle with an XL3600 MFP system, paper, ink, and more.

There's no waiting at the printer with the fastest first page out. Instead, free up your time with easy PDF printing.

Share right away with quick folder access. Digitize your projects with automated scanning, quicksets, and post-editing capabilities.

HP DesignJet XL 3600 Enviro 1x1

Handle your print volumes with confidence.

With a robust design and a compact footprint, this printer provides a flawless user experience with automatic media loading and print stacking.

Be more productive and reduce your expenses with the lowest running costs.

HP DesignJet XL3600 MFP Tech Specs

Product Name    HP DesignJet XL 3600 Multifunction Printer series

AIO Functions    Print, copy, scan

Accessories    3JJ54A HP F40 Folder, 5NB95A HP SmartTracker USB for DesignJet, 5NB95AAE HP SmartTracker for DesignJet, 6KZ29A HP SmartStream Print Controller USB for HP DesignJet XL 3600 Multifunction Printer, 6KZ29AAE HP SmartStream Print Controller for HP DesignJet XL 3600 Multifunction Printer, 6SE87A HP DesignJet XL 3600 MFP Folder Upgrade Kit, C0C66C HP DesignJet PostScript/PDF Upgrade Kit, L3J69A HP SmartStream USB Preflight Manager, L3J69AAE HP SmartStream Preflight Manager

Acoustic Power Emissions (active, printing)    5.9 B(A) (operating), 4.9 B(A) (idle), <3.7 B(A) (sleep)

Acoustic Pressure Emissions    42 dB(A) (operating), 32 dB(A) (idle), <19 dB(A) (sleep)

Connectivity, Std    Gigabit Ethernet (1000Base-T), Wi-Fi (with optional Jetdirect accessory), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS

Copier Reduce/enlarge    25 to 400%, at 1% increment

Copyright Notice    © Copyright 2022 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Dynamic security    Dynamic security enabled printer

Ecolabels    ENERGY STAR® qualified, EPEAT®
Electromagnetic Emission Standard    Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)

Energy Star Certified    Yes
Environmental Certifications    ENERGY STAR; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT

First Page Out    29 sec[1]; Wake-up time less than 10 sec (no warm-up time)

HP ePrint Capability    Yes

Hard Disk    Standard, 500 GB (AES-256 encrypted)

Ink Drop    6 pl (C, M, Y, G, pK); 9 pl (mK)

Ink Types    Dye-based (C, G, M, pK, Y); pigment-based (mK)

Line Accuracy    ±0.1%[3]

Linear Scan Speed (imperial)    Scan: Up to 3 in/sec (color, 200 dpi), up to 10 in/sec (grayscale, 200 dpi); Copy: Up to 6 in/sec (color, 200 dpi), up to 10 in/sec (grayscale, 200 dpi)

Linear Scan Speed (metric)    Scan: Up to 7.62 cm/sec (color, 200 dpi), up to 25.4 cm/sec (grayscale, 200 dpi); Copy: Up to 15.24 cm/sec (color, 200 dpi), up to 25.4 cm/sec (grayscale, 200 dpi)

Manufacturer Warranty    90-day limited hardware warranty

Maximum Scan Length (imperial)    164 ft (PDF), 39 ft (TIFF), 26 ft (JPEG)[5]
Maximum Scan Length (metric)    50 m (PDF), 12 m (TIFF), 8 m (JPEG)[5]

Media Handling, Document Finishing    Sheet feed, spindle-less drawers, automatic front-loading roll feed, smart roll switching[6], integrated output stacker[7], media bin, automatic horizontal cutter; Scanner: straight-through scan paper path for sheet and cardboard originals

Media Size Maximum, Imperial (facet)    36

Media Size Maximum, Metric (facet)    910

Media Sizes Custom (imperial)    8.3 x 11 to 36 x 48 in

Media Sizes Custom (metric)    210 x 279 to 914 x 1219 mm

Media Sizes Standard (imperial Rolls)    11 to 36-in width, 656-ft length, 3-in core (default) or 2-in core (optional)

Media Thickness (by paper path)    Up to 19.7 mil

Media Thickness (imperial)    0.03 in

Media Thickness (metric)    Up to 0.5 mm

Media Thickness Maximum (metric)    0.8 mm

Media Types    Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, vinyl), banner and sign materials (polypropylene, scrim banner)

Media Weight Recommended (metric)    60 to 328 g/m²

Media Width Maximum (imperial)    36 in

Media Width Maximum (metric)    914 mm

Media sizes standard (metric rolls)    279 to 914-mm width, up to 200-m length, 3-in core (default) or 2-in core (optional)

Minimum Line Width Footnote (imperial)    0.0028 in (0.07 mm) (ISO/IEC 13660:2001(E))[3]

Mobile Printing Capability    Direct print from mobile apps on iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android

Model Size (imperial)    36 in

Model Size (metric)    914 mm

Monthly Printed Pages (facet)    Very frequently

Network Ready    Standard

Non-operating Humidity Range    0 to 95% RH

Operating Humidity Range    20 to 80% RH

Operating Temperature Range (celsius)    5 to 35ºC

Operating Temperature Range (fahrenheit)    41 to 95ºF

Package Dimensions (imperial)    64 x 30 x 50 in

Package Dimensions (metric)    1625 x 770 x 1260 mm

Package Weight (imperial)    Single-roll: 448 lb, dual-roll: 485 lb

Package Weight (metric)    Single-roll: 203 kg, dual-roll: 220 kg

Power Consumption Description    <120 W (printing + scanning); 40 W (ready); <14 W (sleep); 0.3 W (off)

Power Supply Required    Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A

Primary Applications (facet)    Office documents and presentations; Engineering and construction documents; Maps

Print Cartridge Volume Delivered (metric)    300 ml

Print Cartridge, Color(s)    Cyan, gray, magenta, matte black, photo black, yellow

Print Cartridges, Number    6 (cyan, gray, magenta, matte black, photo black, yellow)
Print Heads    1 (C, M, Y, G, mK, pK)

Print Languages, Optional    Non-PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7
Print Languages, Standard    PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4; Non-PostScript Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4

Print Resolution Color (best)    Up to 2400 x 1200 optimized dpi

Print Speed (imperial)    180 D/hr; 19.3 sec/D; 3 D/min[2]

Print Speed (metric)    180 A1/hr; 19.3 sec/A1; 3 A1/min[2]

Print Technology    HP Thermal Inkjet

Printer Drivers Included    PostScript Printer: PostScript and PDF Windows drivers, raster drivers for Windows, AirPrint for macOS; Non-PostScript Printer: Raster drivers for Windows, AirPrint for macOS

Printing Path    Direct printing from USB flash drive, print from network shared folder, email printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint driver for macOS and iOS, HP Print for Chrome OS, HP Click, HP Smart App for iOS and Android, HP SmartStream (optional)

Product Dimensions (imperial)    59 x 26 x 52 in

Product Dimensions (metric)    1500 x 660 x 1310 mm

Product Logos    Adobe PDF Print Engine 4; Adobe PostScript 3; AirPrint; ENERGY STAR; EPEAT; Windows 10 Compatible
Product Type (facet)    Production Printers
Product-specific Additional Information Pointer

  Recommended Media    C6810A HP Bright White Inkjet Paper (FSC® certified)[9] (recyclable)[10] 914 mm x 91.4 m (36 in x 300 ft); C6980A HP Coated Paper (PEFC™ certified)[9] (recyclable)[10] 914 mm x 91.4 m (36 in x 300 ft); L5C80A HP Universal Heavyweight Coated Paper, 3-in Core (FSC® certified)[9] (recyclable)[10] 914 mm x 91.4 m (36 in x 300 ft); D9R28A HP Everyday Matte Polypropylene, 3-in Core 914 mm x 61 m (36 in x 200 ft)

Roll External Diameter    180 mm

Roll External Diameter (imperial)    7 in

Roll Maximum Input    2

Roll Maximum Weight (imperial)    33 lb

Roll Maximum Weight (metric)    15 kg

Safety Approvals and Requirements    USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA); Singapore (PSB); China (CCC); Argentina (IRAM); Mexico (NYCE); India (BIS)

Scan File Format    JPEG, TIFF and multipage TIFF, PDF and multipage PDF[4]

Scan Input Modes    USB, shared network folder, printer HDD, email

Scan Resolution, Optical    Up to 600 dpi

Scan Size Minimum (imperial)    8.2 x 11.6 in

Scan Size Minimum (metric)    210 x 297 mm
Scan Type    Sheetfed, CIS (Contact Image Sensor)

Security Features    HP Secure Boot, Whitelisting, TPM, Role Based Access Control, LDAP and Kerberos authentication, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypting HDD, encrypted PIN printing, Syslog security logging

Segment (facet)    Business

Software Included    HP Click[4], HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartStream[4] (optional), HP SmartTracker (optional)

Standard Media Sizes Supported (imperial)    A, B, C, D, E

Standard Media Sizes Supported (metric)    A4, A3, A2, A1, A0

Standard Memory    128 GB (file processing)[8]

Storage Temperature Range (celsius)    -25 to 55ºC

Storage Temperature Range (fahrenheit)    -13 to 131ºF

Sub Brand (facet)    DesignJet XL

Subcategory (facet)    Large format

Supported Applications, Primary    Line drawings; Maps; Orthophotos; Presentations; Renderings

Taxonomy (facet)    Large Format Printers/ Plotters

Tech Spec Footnote 01    [1] For testing criteria, see

Tech Spec Footnote 02    [2] Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks.

Tech Spec Footnote 03    [3] ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E HP Matte Film in Best or Normal mode with Original HP inks.

Tech Spec Footnote 04    [4] Available on PostScript models only.

Tech Spec Footnote 05    [5] Scanned at 200 dpi. PDF scanning available on PostScript models only.

Tech Spec Footnote 06    [6] Applicable for dual-roll printers only.

Tech Spec Footnote 07    [7] From A4/A to A0/E, with up to 100 A1/D-size capacity.

Tech Spec Footnote 08    [8] Based on 8 GB RAM.

Tech Spec Footnote 09    [9] BMG trademark license code FSC®-C115319, see HP trademark license code FSC®-C017543, see BMG trademark license code PEFC™/29-31-261, see HP trademark license code PEFC™/29-31-198, see Not all FSC®- or PEFC™-certified products are available in all regions.

Tech Spec Footnote 10    [10] Can be recycled through commonly available recycling programs.

Technology    Ink

Weight (imperial)    Single-roll: 340 lb, dual-roll: 375 lb

Weight (metric)    Single-roll: 154 kg, dual-roll: 170 kg

What Is In The Box    HP DesignJet XL 3600 Multifunction Printer, printhead, introductory ink cartridges, scanner calibration sheet, 2-in hub right adapter kit, quick reference guide, setup poster, power cord



Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Local printing requires mobile device and printer to be on the same network (usually Wi-Fi access points bridge wireless to wired connections) or have a direct wireless connection. Wireless performance is dependent on physical environment and distance from access point. Wireless operations are compatible with 2.4 GHz operations only. Remote printing requires an Internet connection to an HP web-connected printer. Wireless broadband use requires separately purchased service contract for mobile devices. Check with service provider for coverage and availability in your area.
