HP DesignJet XT 950 Multifunction Printer

Go Big or Go Small with an industry-exclusive integrated half-size media tray and stacker.

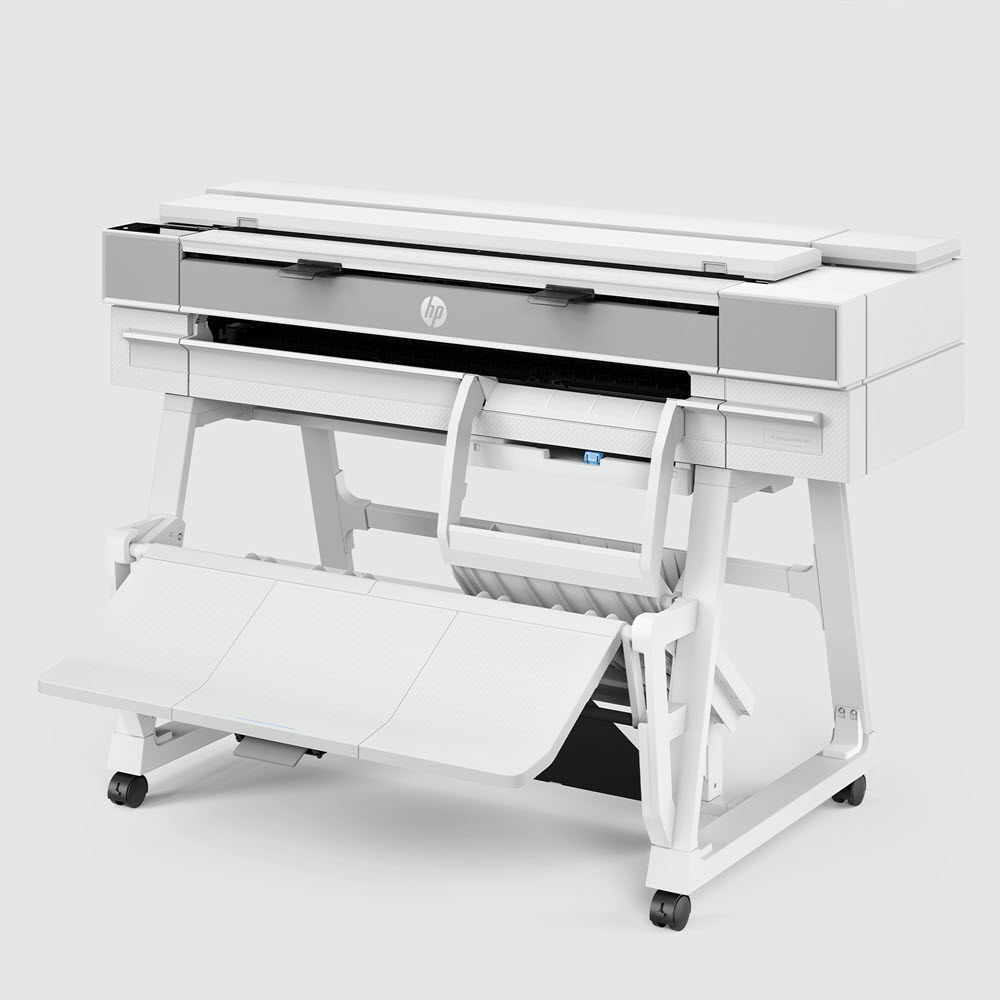

Designjet T950 MFP- eTail - KSP 5 - recycled plastics - Smaller

The HP DesignJet XT950 meets the growing need for printing more half-size drawings.

The Architecture, Engineering, and Construction (AEC) industry is witnessing a significant shift in printing demands, with a growing need for full and half-size sheets.

Recognizing this evolution, HP introduced the DesignJet XT950, a game-changing large-format plotter that caters to the diverse requirements of the modern AEC professional.

Read more about printing half-size sheets with the XT950.


Elevating Workflows

In a world where efficiency is paramount, the DesignJet XT950 simplifies your printing workflows.

Effortless 1-click Printing and Scanning

Streamline document management with effortless one-click operations.

Unattended Remote Printing for Workgroups

Remote productivity knows no boundaries. This innovative feature ensures uninterrupted workflow, even when you are away from the office. Sustain productivity, whether during standard office hours or beyond.

Advanced Monitoring Tools

Gain greater control over your printing environment with powerful monitoring tools.


Safeguarding Your Assets

The importance of network security is crucial because cybercrimes are on the rise. With the DesignJet XT950, you benefit from these included features.

Real-Time Monitoring Tools

Maintaining control is imperative. Real-time monitoring empowers users to oversee print jobs continually, guaranteeing that operations remain on schedule and within expectations.

HP Wolf Security
Protect your valuable data with state-of-the-art security measures. Safeguard your device from cyber threats, detect intrusions, and eliminate malicious attacks before they compromise your work.

Environmental Pledge

Environmental responsibility is vital today. Many of the top AEC firms already have sustainability initiatives in place. The HP XL 3800 Plotter epitomizes this commitment:

Utilization of Recycled Materials
DesignJet XT950 products and packaging incorporate recycled materials, demonstrating a dedication to eco-conscious practices.

GO BEYOND Forest Conservation
Trust in HP's top environmental certifications and a commitment to forest-first practices.

HP DesignJet XT950 MFP

Get a Personalized HP DesignJet XT 950 MFP Quote

Get a bundle with an XT950 MFP system, paper, ink, and more.

Advanced Stacker

The XT950 configures with an advanced stacker that separately organizes regular-size drawings from half-size prints. Half-size drawings drop into their dedicated catch tray.

Impressive Speed

With a print speed of 120 D-size sheets per hour, the XT950 is a workhorse designed to meet your demanding printing needs.

300-Foot Paper Rolls

Load 300-foot paper rolls for uninterrupted printing, enhancing productivity.


HP DesignJet T950 Printer - Lifestyle 16 - Smaller

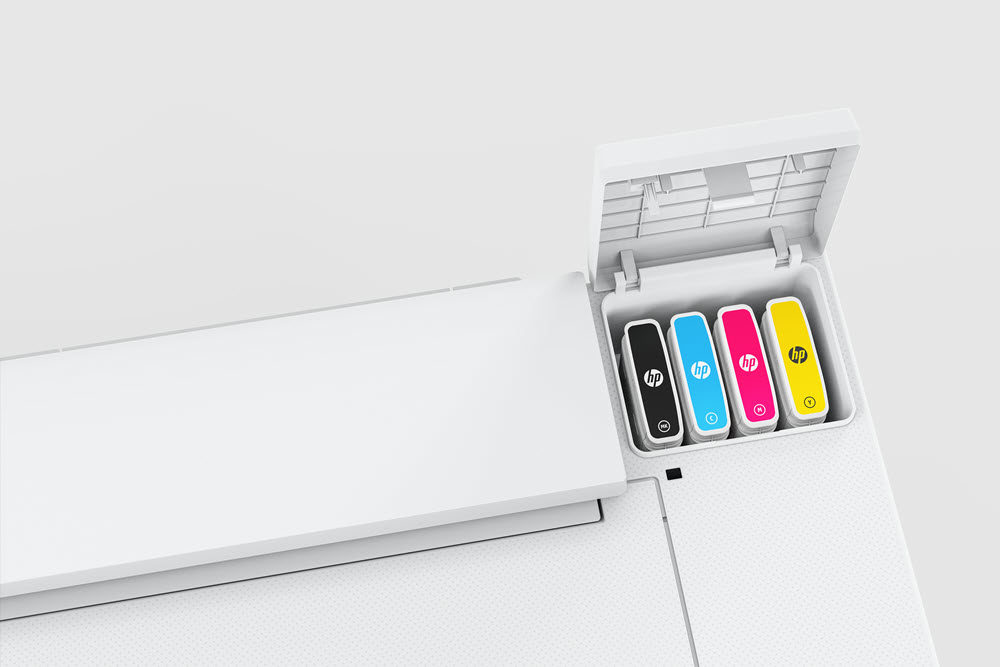

HP DesignJet T950 Closeup Inks 01 - Smaller

HP Flex Tech Inks:

Durable pigment-based inks, fade and water-resistant, provide outstanding fine-line details and vivid colors.

Unmatched Security:

HP Wolf Security takes a proactive approach to secure your printer and data, forming a fortress of protection that most threats can't penetrate.

Simplified Management:

Effortlessly monitor connected printers, automate tasks, and print from anywhere using the HP app. HP Click simplifies job submission, saving you valuable time and resources.

Sustainability at Heart:

The DesignJet XT950 is committed to lasting quality and eco-conscious printing, containing up to 35% recycled plastic

Experience the Future of AEC Printing:

We invite you to schedule a consultation and product demonstration with our experts. Let us showcase how the DesignJet XT950 can elevate your AEC projects, increase efficiency, and drive long-term ROI.

Invest in Quality, Choose the DesignJet XT950:

Elevate your large-format printing experience with the DesignJet XT950, backed by TAVCO's commitment to quality and reliability.

HP DesignJet T950 Printer - Lifestyle 20 - Smaller-1

TAVCO is Your Trusted HP Partner

TAVCO stands as your unwavering partner in AEC success. We prioritize quality, reliability, and enduring vendor relationships. Our solid after-sales support ensures that your investment is protected.

HP DesignJet XL3600 MFP Tech Specs

Product Number 2Y9H3F
Product Name HP DesignJet XT950 36-in Multifunction Printer
Product Line 30
AIO Functions Print, copy, scan
Acoustic Power Emissions (active, printing) 5.8 B(A) (operating), <3.4 B(A) (idle)
Acoustic Pressure Emissions 42 dB(A) (operating), <16 dB(A) (idle)
Connectivity, Std Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n
Copier Reduce/enlarge 50 to 400%
Dynamic security Dynamic security enabled printer
Electromagnetic Emission Standard Compliant with Class B requirements, including USA (FCC rules), Canada (ICES), EU (RED Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Korea (KCC)
Energy Star Certified Yes
Hard Disk None
Ink Drop Size 6 pl (C, M, Y); 12.6 pl (mK)
Ink Types Pigment-based (C, M, Y, mK)
Line Accuracy ±0.1%[2]
Linear Scan Speed (imperial) Up to 1.5 in/sec (color, 200 dpi), up to 4.5 in/sec (grayscale, 200 dpi)
Manufacturer Warranty One-year limited hardware warranty. Warranty and support options vary by product, country, and local legal requirements.
Maximum Optical Density (black) 15 L* min/1.7 D
Maximum Scan Length (imperial) 23 ft
Media Handling, Document Finishing Sheet feed, roll feed, front-loading input tray (100 sheet capacity), sheet organizer (50 sheet capacity[5]), stacker (40 sheet capacity[5]), automatic horizontal cutter
Media Size Maximum, Imperial (facet) 36
Media Sizes Custom (imperial) Front-loading input tray: 8.3 x 11 to 12 x 18 in; Manual feed: 8.3 x 11 to 36 x 66 in
Media Sizes Standard (imperial Rolls) 14.5 to 36 in
Media Thickness (imperial) Up to 0.03 in
Media Types Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (ID satin, ID gloss), self-adhesive (adhesive matte/gloss, adhesive polypropylene gloss), Polypropylene (matte)
Non-Printable Area (imperial cut-sheet) 0.2 x 0.2 x 0.2 x 0.2 in
Non-printable Area Roll Media (imperial) 0.2 x 0.2 x 0.2 x 0.2 in
Operating Humidity Range 20 to 80% RH
Package Dimensions (imperial) 62 x 24.8 x 30.7 in
Post Consumer Recycled Plastic In Hardware by weight of plastic 36%
Power Consumption Description 35 W (printing), <11 W (ready), <3.5 W (sleep), <0.1 W (standby). Auto-scheduled printer on/off usage.
Print Cartridge Volume Delivered (metric) 300 ml, 130 ml
Print Cartridge, Color(s) Cyan, magenta, yellow, matte black
Print Cartridges, Number 4 (C, M, Y, mK)
Print Head Nozzles 1376 per color; 5504 in total
Print Heads 1 (C, M, Y, mK)
Print Languages, Standard TIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL, CALS G4
Print Multi-size Files In One Click Yes
Print Resolution Color (best) Up to 2400 x 1200 optimized dpi
Print Speed (imperial) 21 sec/page for D size, 120 D size 24'' x 36'' prints per hour[1]
Print Speed (metric) 21 sec/page on A1, 120 A1 prints per hour[1]
Print Technology HP Thermal Inkjet
Printer Drivers Included Raster driver for macOS and Windows, HP-GL/2 driver for Windows
Printing Path Wi-Fi Direct, remote printing, Apple AirPrint and HP app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, print from USB pen drive
Product Dimensions (imperial) 55.4 x 28.3 x 38.1 in
Product Dimensions (metric) 1407 x 720 x 967 mm
Recommended Media HP Universal Bond Paper (FSC® certified)[6] (recyclable)[7];
HP Coated Paper (FSC® certified)[6] (recyclable)[7];
HP Heavyweight Coated Paper (FSC® certified)[6] (recyclable)[7]
Remote Print Enabled Yes
Roll External Diameter 140 mm (metric), 5.5 in (imperial)
Roll Maximum Input 1
Roll Maximum Weight 28.6 lb (imperial), 13 kg (metric)
Safety Approvals and Requirements USA and Canada (CSA certified);
EU (RED Directive, EN 62368-1 compliant);
Singapore (PSB);
China (CCC);
Mexico (NYCE);
Argentina (IRAM);
India (BIS)
Scan File Format JPEG, PDF, TIFF
Scan Input Modes Scan to email, network, and USB;
Scan to cloud, computer, and mobile through HP app
Scan Resolution, Optical Up to 600 dpi
Scan Size Maximum (flatbed) 36 x 109 in (imperial), 914 mm x 2.77 m (metric)
Scan Size Minimum (flatbed) 5 x 5 in (imperial), 127 x 127 mm (metric)
Scan Type Sheetfed, CIS (Contact Image Sensor), media jam detection sensor, front feed scanning method
Security Features HP Secure Boot, whitelisting, Security event logging, Disable network ports and protocols, SNMPv3, 802.1x compatibility, TLS/SSL, Semi-permanent-queue Erase, NTLM v2, HP Web JetAdmin, HP Security Manager, SIEM Integration
Segment (facet) Business
Software Included HP Click for Windows and macOS, HP app for Windows, macOS, Android, and iOS
Standard Media Sizes Supported Input tray: A, B; Manual feed: A, B, C, D, E (imperial), Input tray: A4, A3; Manual feed: A4, A3, A2, A1, A0 (metric)
Standard Memory 2 GB
Storage 2.7 GB reprint queue
Storage Temperature Range -25 to 55°C (celsius), -13 to 131°F (fahrenheit)
Sub Brand (facet) DesignJet
Subcategory (facet) Large format
Supported Applications, Primary Line drawings; Renderings; Presentations; Maps; Posters
Taxonomy (facet) Large Format Printers/ Plotters
