Leica BLK3D Field Photogrammetry Camera

Handheld device to capture and measure site conditions

Lease-to-own starting under $198 per month



Get Quote

Document each step of construction 4x faster

Take measurements at height without needing a ladder

Shoot pictures on site, measure back at the office

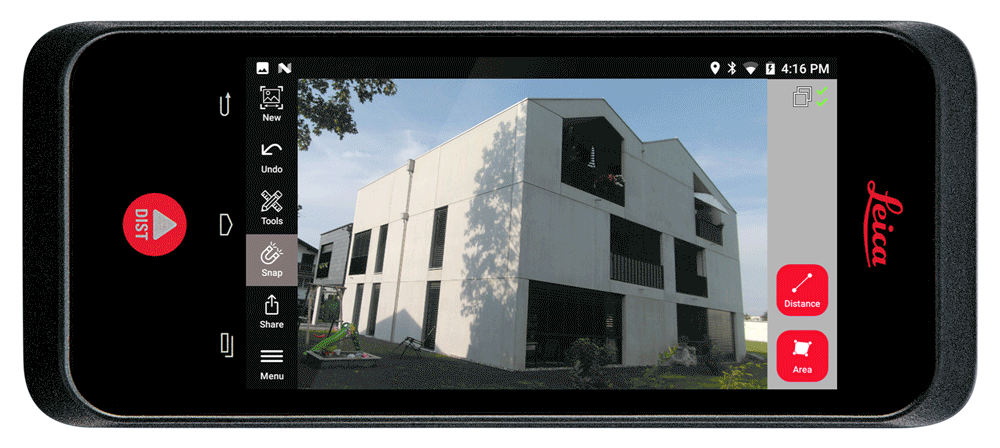

distance_measurement_1000x448x256x_white



[ Shop now for BLK3D Imager ]



The Leica BLK3D is a real-time, in-picture 3D photogrammetry camera and measurement solution.

Take a picture and instantly have access to measurable data embedded in the image.

Edge computing capabilities eliminate the need for network connections and cloud services.

Professionals can make faster decisions within their daily workflows with a BLK3D.

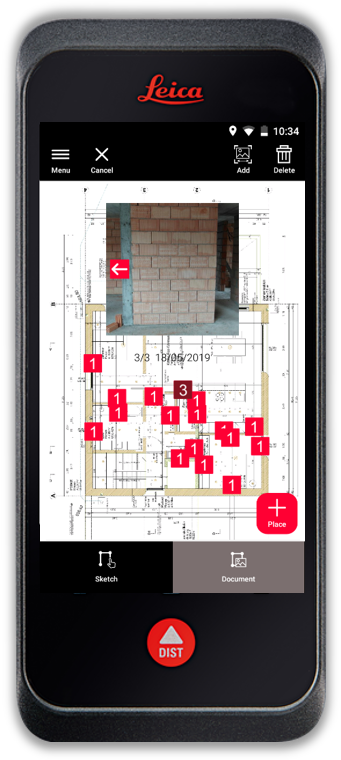

BLK3D Plan Markup - TAVCO



[ Shop Now ]



Take a picture. Measure anything.

The BLK3D captures images and places precise measurements at your fingertips. Share images and measurements in multiple formats.



New dimensions for 2D pictures.

The BLK3D creates images that contain precise three-dimensional measurements.



The art of photogrammetry. Simplified.

Un-matched combination of a calibrated stereo-camera, advanced algorithms and real-time edge computing fused with leading Electronic Distance Measurement (EDM) technology.



Access projects. Anywhere, anytime.

Measure in your image – on the handheld imager, on the desktop, on-site or in the office.

Working with digital floorplans.

Create floorplans and import existing ones. Add measurable images. Document construction progress with multiple images over time.



Progressive project documentation for AEC.

Capture critical moments throughout the life of a building.



Object detection and snapping.

Auto-Snapping uses computer vision technologies to select the right points for your measurements.



Store. Organize. Share.

Store your measurable images on the device and on desktop. Organize your projects by tagging measurable images with searchable keywords for easy recall and share them in multiple formats.



BLK3D PRODUCT SPECIFICATIONS



Physical Specs

Dimensions (H x W x D): 7.11 x 3.06 x 1.07 in

Weight (with rechargeable battery): 17 oz

Temperature Range:

Storage: -13 to 140 °F

Operation: 14 to 122 °F

Charging: 32 to 104 °F

Tripod Adapter: Supports 1/4-20 UNC screw adapters



Technology

Operating System: Android 7.1.2 (Nougat)

Processor (with integrated GPU): Snapdragon 820E QuadCore (2.35 GHz)

RAM Memory: 4 GB

Real-Time Processor: STM32F446

Screen: 5.0” IPS, HD 720×1280 LCD capacitive multi-touch screen, chemically strengthened, brightness: 450 cd/m2

Stereo Camera: Pixels: 2 x 10 MP (15.8 cm diagonal base line)

Field of View: 80°

Focal length: 4.0 mm (22 mm in 35 mm equiv. in 1:1)

Aperture: F3.0

EDM camera: Pixels: 2 MP

Field of View: 14°

I/O: USB Type-C 1.0 for data transfer and charging (water resistant)

Integrated Speaker and Microphone

Keyboard: Three Physical Buttons (Power, Laser/Photo Capture, Photo Capture)

Four Touch Buttons (Back, Home, Recents, Laser/Photo Capture)

Additional Sensors: Compass, 3D Accelerometer and 3D Gyroscope

Laser Class: 2

Laser Type: 655 nm, 0.95 mW



Storage

Internal Storage: 64 GB (equals 14000 single-shot or 5000 multi-shot 3D images)



Communication

Bluetooth® Smart: Bluetooth v4.1 and v2.1, Radiated Power: 1.78 mW (BLE)

Radiated Power: 10.00 mW (BT classic)

Frequency: 2402-2480 MHz

Wireless LAN: Standard: 802.11 b/g/n, Radiated power: 6.31 mW

Frequency: 2412-2472 to 2412-2462 MHz

GPS: A-GPS and GLONASS

Power Management

Battery: Rechargable Battery Pack Li-ion, (3.80 V, 3880 mAh, 14.7 Wh)F

Power management: AC adapter (input: 100-240 V AC)

External Charger (input: 100-240 V AC) (optional)

Charge Time: < 3.5 h (with AC adaptor) < 5h (with optional external charger)

Operating time: Typical capture: 4h / 220 multi-shot captures 1

Continuous capture: 2.5 h /1000 single shot captures1

Laser measurements: 6.5 h / 9500 laser measurements

Auto power off after 3 h in sleep mode

3D Image Distance Measurement

2D In-Picture Accuracy: ± 3 mm (0.12 in)

3D In-Picture Accuracy: ± 6 mm (0.24 in)



Laser Distance Measurement

Accuracy with Favorable Conditions: ± 1.0 mm (0.04 in)6

Accuracy with Unfavorable Conditions: ± 2.0 mm (0.08 in)6

Range with Favorable Conditions: 250 m (820 ft)

Range with Unfavorable Conditions: 120 m (394 ft)

Smallest Unit Displayed: 0.1 mm (1/32 in)

X-Range Power Technology™: Yes

Ø Laser Point at Distances: 6 / 30 / 60 mm (10 / 50 / 100 m)



Tilt Measurement

Measuring Tolerance to Laser Beam: ± 0.2°

Measuring Tolerance to Housing: ± 0.2°

Range: 360°

P2P Measurement with DST 360 (Optional)

Working Range Vertical Sensor: -64° to > 90°

Accuracy Vertical Sensor up to: ± 0.1°

Working range horizontal sensor: 360°

Accuracy Horizontal Sensor up to: ± 0.1°

Tolerance P2P Function at Distances (combination of sensors and distance measuring) approx.: ± 2 mm / 2 m, ± 5 mm / 5 m, ± 10 mm /10 m°

Levelling Range: ± 5°



[ Download the BLK3D Spec Sheet ]
