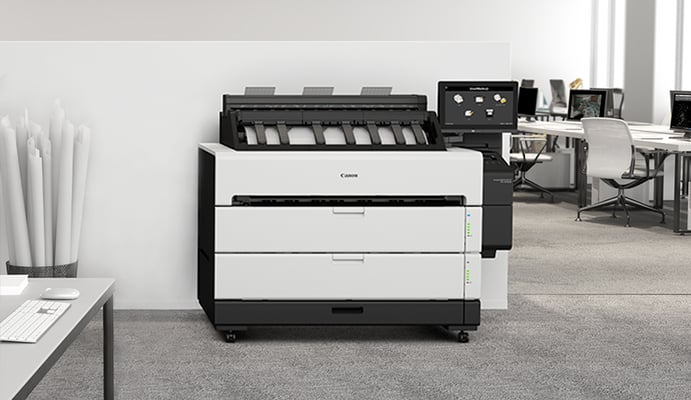

Canon iPF TZ 30000

The Fastest imagePROGRAF Large Format Printer. Ever!

Get More Work Done with the Canon TZ Large Format Printer


Print, scan, and copy construction drawings, GIS maps, and posters faster than ever.

Print your jobs right the first time, every time.

Stay protected with the latest onboard network security features.



Introduction to the TZ Series Video



Request a custom quote



Print With Speeds That Rival Toner-Based Systems

The Canon TZ-30000 is a 36-inch wide printer capable of printing 4 D-sized sheets per minute. That's up to 244 Arch D sheets per hour. Plus, get your first sheet out in as little as 14 seconds. This outclasses the performance of most legacy LED toner plotters out there.


Get Amazing Looking Prints Every Time

The TZ-series features an all-new 5-color TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand the outdoor conditions of a construction site.


Save Time with More Paper Capacity

The TZ-3000 plotter ships standard with two media rolls for maximum productivity. The dynamic nature of the machine allows you to load two rolls of 36-inch paper for extra capacity, or mix and match any paper sizes or types.

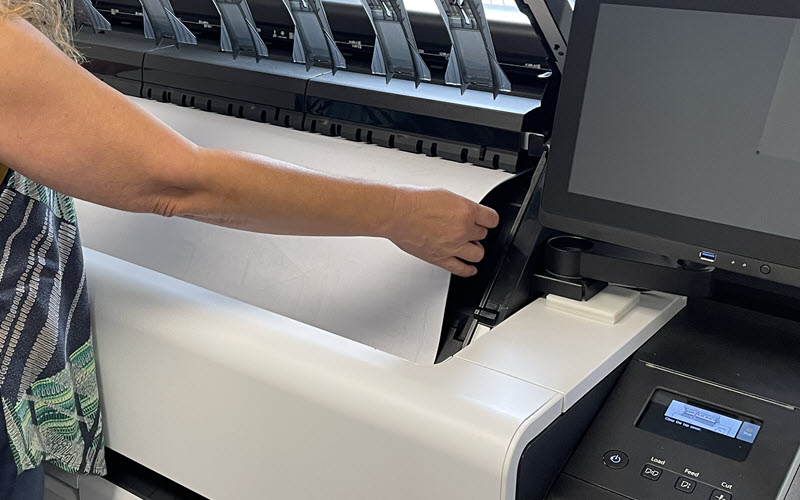

Easiest paper handling in the industry

The new Canon iPF TZ printers can stack up to 100 sheets of ARCH D or ARCH E size sheets with the Top Output Stacker for increased productivity. The stacker also features Canon's advanced air flow system, with cushions each outgoing sheet with a cushion of air. This greatly reduces the potential for any paper jams and keeps prints neatly aligned.


Scan and Copy Drawings With the Greatest of Ease

The integrated full-color Z36 scanner gives you the dynamic functionality of digitally scanning sheets to a network or cloud-based drive. This scanner is fast allowing you to scan b/w documents at 13"/second and full color drawings at 6"/second. Plus, the intuitive touchscreen controller makes scanning and copying a breeze.

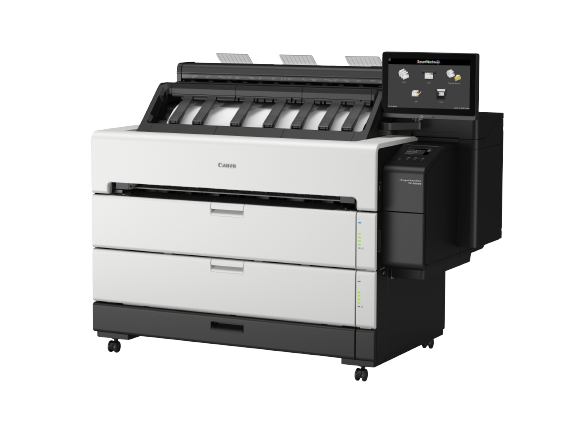

TZ-30000_MFP_Z36-36paper-sideHigh Capacity Ink Tanks

Canon's LUCIA TD inks are available in either 330ml or 700ml ink tanks, you have the ability to purchase a combination of ink sizes based on your printing volume.



Sub Ink Tank System

The Sub-Ink Tank System allows all of the available ink in a tank to be used before having to replace it, helping eliminate any wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.



PF-06 Print Head

The newly designed PF-06 is a 1.07-inch, 6-channel print head with 15,360 nozzles. Combined with the TZ-30000's high speed carriage transfer and ink ejection, this print head allows for ink to be laid down quickly and precisely.



Automatic Intelligent Media Loading

Media is now loaded automatically in the new TZ Series printers. Users simply place a roll in an opened paper drawer and slide the media in the front of the printer. The printer then auto detects media, type, width, and length. The Canon iPF TZ then adjusts the media into optimal printing position.



New Stacker

The new integrated Canon TZ Stacker can stack up to 100 sheets of ARCH C, ARCH D, or ARCH E/E1 page sizes for increased productivity.



Advanced Security Features

The TZ Stacker is loaded with new security features to keep your equipment and your data safe. The internal self-encrypting hard drive completely erases all files with the touch of button. The printer is IPSec, 802.1x compatible and TLS-enabled/disabled encryption capability. Print management can also be controlled with a numerical passcode that must be entered in the control panel to help ensure that only you have access to our prints.



Download the Canon TZ 30000 brochure

Download the Canon TZ 3000 spec sheet

Use the Canon Plotter Printing Cost Calculator

 Read the Definitive Guide to Canon Plotters & Printers

See the full selection of Canon systems



Get Quote





Printer Specifications
Print head Canon PF-06
Number of matte black nozzles 5,120 nozzles
Number of nozzles (other colors) 2,560 nozzles/color
Ink droplet size 5 picoliter
Ink type Pigment - matte black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (Bk)
Printer RAM 128 GB (2 GB physical memory)
Hard drive 500 GB (encrypted)
Media feed roll feed: two front loaded rolls; cut sheet: front loading
Media width Roll feed: 8" - 36"; cut sheet: 8" - 36"
Media cutter Durable dual-blade rotary cutter
Media thickness 0.07mm - 0.8mm
Media core sizes 2" and 3" core adapters included
Maximum roll outer diameter 6.9" or less
Media output Font output: basket; top output: top delivery tray
Printing software utilities Accounting Manager, Canon Print Service, Device Management Control, Direct Print Plus, Free Layout Plus, Media Configuration Tool, PosterArtist Lite for Windows, CPP Publisher Select, Canon Print Driver, Optimized driver for AutoCAD, Printer Driver Extra Kit
Operating system Windows 7, 8.1, 10, Server 2008 R2, Windows Server 2016, and Apple Macintosh OS 10.12.6 and later
Power supply AC 100-240V (50-60Hz)
Power consumption Maximum: 68W or less; Standby: 3.6W or less; Power off: 0.3W or less
Certifications International ENERGY STAR Program
Operational temperature environment 59° F - 86°F
Operational relative humidity 10%-80% (no condensation)
USB interface Built-in high speed USB B; USB A direct print
Ethernet interface Built-in gigabit ethernet IEEE 802.3u 100Base-TX, 802.3ab 1000Base-T
Wireless LAN Standard IEEE802.11n/802.11g/802.11b - WEP (64/128 bit), WPA-PSK (TKIP/AES),(WPA2-PSK (TKIP/AES)
Printer only dimensions (H x W x D) TZ-30000 Printer: 47" x 61" x 38" (Approximately 456 lbs.)
MFP configuration dimensions (H x W x D) TZ-30000 MFP: 51" x 63" x 38" (Approximately 456 lbs.)
What's in the box Printer, top output stacker, basket, 2"/3" core media spool (adapters included), power cord, tools and screws, print head, maintenance cassette, 5 ink tanks (330ml MBK, 160ml BK/C/M/Y, Ethernet card, USB 2.0 Interface, USB connection sheet, user manual, quick step guide, user software CD, user registration card, warranty statement.



Z36 Scanner Specifications
Scan speed 24-bit color @ 200dpi: 3" per second; 8-bit grayscale and monochrome @200 dpi: 13" per second
Copy speed 24-bit color @200dpi: 6" per second
Scan modes 16.7 million color RBG (24 bit); 256-level grayscale (8-bit); black/white
Color space sRGB
Maximum resolution 1200 dpi (optical)
Scan accuracy +/- 0.1%; +/- 1 pixel
Maximum scan width 38"
Maximum scan length 315" (JPEG/PDF); 598 (TIFF)
Maximum scan thickness 0.003" - 0.04" (0.07mm - 1.0mm)
Digital imaging technology Contact imaging sensor (CIS) SingleSensor Technology
Included software Smartworks MFP Scan-to-Copy/file/email with real-time image viewer, supports TIFF, JPEG, TIFF G4, and PDF
Operating system Windows 10 LTSC
Scanner interface kit Superspeed USB 3.0 (PC compatible with USB 2.0 and USB 3.0 sockets)
External power supply 110 - 240 VAC autosensing
Scanner power consumption Sleep: 0.2W; Idle: 12.4W; Scanning color/grayscale @200dpi 22.7W/ 23.2W
Compliance International ENERGY STAR Program
Scanner dimensions (H x W x D) 6.1" x 41.6" x 9.9"
Scanner weight 17.3 lbs.
What's in the box Z36 scanner with power cord, USB 3.0 cable (2m), 15.6" touchscreen system controller PC, 3:1 Trident power cord, power supply, mount for printer and system controller, (2) paper edge guides, calibration target, assembly and startup guide.

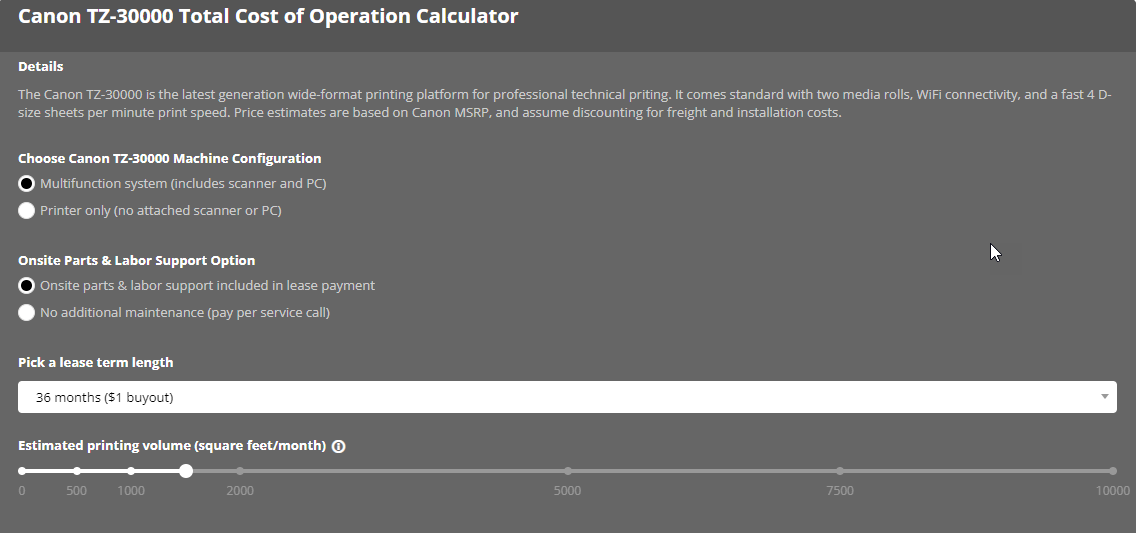

Discover the Printing Costs of a Canon iPF imagePROGRAF MFP/Printer

wide-format-plotter-scanner-analysis-3

Download our Canon Cost Analysis Sheets to estimate your cost per page or per square foot. Knowledge is power when planning your Total Cost of Operation (TCO).

Know your numbers

Plan ahead

Budget accurately



Download the Canon Cost Analysis Sheets
