HP DesignJet T1700 Printer series

Securely, efficiently, and accurately produce quality CAD and GIS applications up to 44 inches

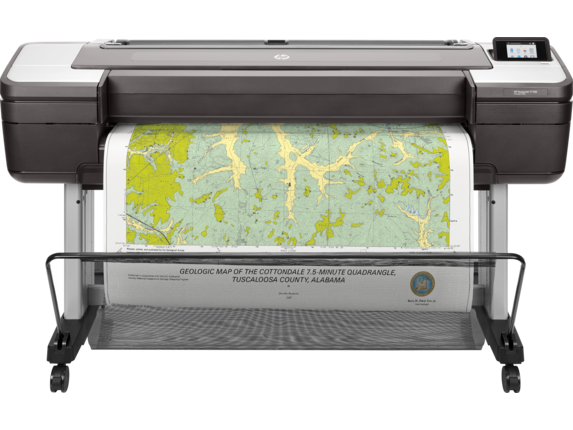

HP Designjet T1700 printer - center facing - Smaller

HP DesignJet T1700 Printer

Confidently take CAD, GIS color reproduction to the next level with a 44-in HP DesignJet printer that delivers powerful security features, high productivity on even the most complex files with the Adobe PDF driver, and bright and precise colors.

The 44-in HP DesignJet T1700 Printer series efficiently handles complex maps and technical documents. Protect your device and data with advanced security features. Print without interruption. And make better decisions with precise colors.

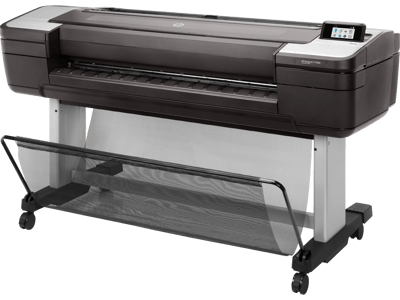

HP Designjet T1700 Left Facing



World's most secure large-format printer

Rely on the best network protection with features like HP Secure Boot and whitelisting.

Control who accesses the printer and its confidential documents with secure user authentication.

Keep your fleet secure at any time with HP JetAdvantage Security Manager.


No more PC freezing up

Adobe PDF drivers free up your computer immediately after sending to print—even for the most complex files.

Handle complex files—powerful processing architecture, 128 GB memory, 500 GB HDD at 116 A1/D pgs/hr.

Six HP Bright Office Inks provide bright color, bold image quality, color/gray/photo black for soft colors, dark tones.





To turn design into delivery

Showcase design versatility, from precise line drafts to boldly colored 3D renders, with HP Bright Office Inks.

The unique Adobe PDF Print Engine provides the highest accuracy and displays the most delicate details.

Cut unproductive tasks with integrated automatic print stacking, up to 100 pages.


HP DesignJet T1700 Printer Series

A 44-inch printer to efficiently handle complex maps and technical documents.

Get a Personalized HP DesignJet T1700 Quote

Get a bundle with a T1700 44-inch printer, paper, ink, and more.

HP DesignJet T1700 Tech Specs

Product Name    HP DesignJet T1700 44-in PostScript Printer

AIO Functions    Print

Accessories    HP DesignJet 44-in Spindle Q6709A; HP HD Pro 42-in Scanner G6H51B; HP SD Pro 44-in Scanner G6H50B; HP DesignJet 3-in Core Adapter CN538A; HP USB 3.0 to Gigabit LAN Adapter N7P47AA

Acoustic Power Emissions (active, printing)    6.1 B(A) (operating), 5.0 B(A) (idle), <3.1 B(A) (sleep)

Acoustic Pressure Emissions    45 dB(A) (operating), 32 dB(A) (idle), <15 dB(A) (sleep)

Connectivity, Opt    HP USB 3.0 to Gigabit LAN Adapter

Connectivity, Std    Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port

Copyright Notice    © Copyright 2022 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Dynamic security    Dynamic security enabled printer

Eco Qualified Label 01    ENERGY STAR® certified; EPEAT® Bronze registered
Electromagnetic Emission Standard    Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS)

Energy Star Certified    Yes

Environmental Certifications    ENERGY STAR; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT Silver

HP ePrint Capability    Yes

Hard Disk    500 GB self-encrypting

Ink Drop    6 pl

Ink Types    Dye-based (C, M, Y, PK, G); pigment-based (MK)

Line Accuracy    ±0.1%[2]

Line Accuracy Note    ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E HP Matte Film in Best or Normal mode with Original HP inks

Manufacturer Warranty    One-year limited hardware warranty

Maximum Memory    128 GB (virtual)

Maximum Optical Density (black)    2.15 maximum black optical density (6 L*min)

Maximum Optical Density Footnote (black)    With HP Premium Instant Dry Photo Gloss media with Original HP inks

Media Handling, Document Finishing    Sheet feed, roll feed, automatic horizontal cutter

Media Size Maximum, Imperial (facet)    44

Media Size Maximum, Metric (facet)    1118

Media Sizes Custom (imperial)    8.3 x 11 to 44 x 66 in

Media Sizes Custom (metric)    210 x 279 to 1118 x 1676 mm

Media Sizes Standard (imperial Rolls)    11 to 44-in

Media Thickness (by paper path)    Up to 31.5 mil

Media Thickness (metric)    Up to 0.8 mm

Media Types    Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte), technical paper (natural tracing, translucent bond), film (clear, matte), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (polypropylene, vinyl)

Media Weight Recommended (metric)    60 to 328 g/m²

Media Width Maximum (imperial)    44 in

Media Width Maximum (metric)    1118 mm

Media sizes standard (metric rolls)    279 to 1118-mm

Minimum Line Width Footnote (imperial)    Measured on HP Matte Film

Minimum Line Width Footnote (metric)    Measured on HP Matte Film

Mobile Printing Capability    Direct print from mobile apps on iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android

Model Size (imperial)    44 in

Model Size (metric)    1118 mm

Network Ready    Standard

Non-Printable Area (imperial cut-sheet)    0.12 x 0.67 x 0.12 x 0.12 in

Non-Printable Area (metric cut-sheet)    3 x 17 x 3 x 3 mm

Non-operating Humidity Range    0 to 90% RH

Non-printable Area Roll Media (imperial)    0.12 x 0.12 x 0.12 x 0.12 in

Non-printable Area Roll Media (metric)    3 x 3 x 3 x 3 mm

Operating Humidity Range    20 to 80% RH

Operating Temperature Range (celsius)    5 to 40ºC

Operating Temperature Range (fahrenheit)    41 to 104ºF

Package Dimensions (imperial)    77 x 30.3 x 28 in

Package Dimensions (metric)    1955 x 770 x 710 mm

Package Weight (imperial)    278 lb

Package Weight (metric)    126 kg

Power Consumption Description    < 100 W (printing); < 24 W (ready); < 0.3 W (< 6.5 W with embedded Digital Front End) (sleep); 0.1 W (off)

Power Supply Required    Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max

Primary Applications (facet)    Office documents and presentations; Engineering and construction documents; Maps

Print Cartridge Volume Delivered (metric)    Cyan, magenta, yellow, photo black, matte black, gray (300 ml); Cyan, magenta, yellow, photo black, matte black, gray (130 ml)
Print Cartridge, Color(s)    Cyan, magenta, yellow, photo black, matte black, gray
Print Cartridges, Number    6 (cyan, magenta, yellow, photo black, matte black, gray)

Print Head Nozzles    2112 each color

Print Heads    3 universal printheads, 2 colors each

Print Languages, Standard    Adobe PostScript 3, Adobe PDF 1.7 ext 3, HP-GL/2, TIFF, JPEG, URF, CALS G4

Print Resolution Color (best)    Up to 2400 x 1200 optimized dpi

Print Speed (imperial)    116 D/hr, 26 sec/D[1]

Print Speed (metric)    116 A1/hr, 26 sec/A1[1]

Print Speed Line Drawing (economode, A1 Plain Paper)    116 pages per hour[1]

Print Speed Line Drawing (economode, D Plain Paper)    116 pages per hour[1]

Print Technology    HP Thermal Inkjet

Print Time Black and White Line Drawing (draft US D Plain Paper)    33 sec/page

Print Time Black and White Line Drawing (draft metric A1 Plain Paper)    33 sec/page

Print Time Line Drawing (economode, A1 Plain Paper)    26 sec/page[1]

Print Time Line Drawing (economode, D Plain Paper)    26 sec/page[1]

Printer Drivers Included    Raster drivers for Windows and macOS; PostScript and PDF Windows drivers and macOS PostScript driver

Printing Path    Direct printing from USB flash drive, email printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint for MacOS and for iOS, HP Print for Chrome OS, HP Click, HP Smart App for iOS and Android

Product Dimensions (imperial)    70.9 x 27.4 x 39.3 in

Product Dimensions (metric)    1802 x 695 x 998 mm

Product Logos    Adobe PDF Print Engine 4; Adobe PostScript 3; ENERGY STAR; EPEAT Silver; Gold IPv6 Ready; Mac; PANTONE* Digital Color; Windows 10 Compatible
Product Type (facet)    Office Printers for CAD and GIS

Recommended Media    C6810A HP Bright White Inkjet Paper (FSC® certified) 914 mm x 91.4 m (36 in x 300 ft);C6569C HP Heavyweight Coated Paper 1067 mm x 30.5 m (42 in x 100 ft);Q6581A HP Universal Instant-dry Satin Photo Paper (FSC® certified) 1067 mm x 30.5 m (42 in x 100 ft);Q1406B HP Universal Coated Paper (FSC® certified) 1067 mm x 45.7 m (42 in x 150 ft)

Roll External Diameter    135 mm

Roll External Diameter (imperial)    5.3 in

Roll Maximum Input    1

Roll Maximum Weight (imperial)    26.3 lb

Roll Maximum Weight (metric)    11.9 kg

Safety Approvals and Requirements    USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS)
Security Features    HP Secure Boot, Whitelisting, Role Based Access Control, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypting HDD, PIN printing

Segment (facet)    Business

Software Included    HP Click, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS

Standard Media Sizes Supported (imperial)    A, B, C, D, E

Standard Media Sizes Supported (metric)    A4, A3, A2, A1, A0

Standard Memory    128 GB (virtual)[3]

Standard Memory Note    Based on 4 GB DDR3 RAM

Storage Temperature Range (celsius)    -25 to 55ºC

Storage Temperature Range (fahrenheit)    -13 to 131ºF

Sub Brand (facet)    DesignJet

Subcategory (facet)    Large format

Supported Applications, Primary    Line drawings; Maps; Orthophotos; Presentations; Renderings

Taxonomy (facet)    Large Format Printers/ Plotters

Tech Spec Footnote 01    [1] Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks.

Tech Spec Footnote 02    [2] ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E HP Matte Film in Best or Normal mode with Original HP inks.

Tech Spec Footnote 03    [3] Based on 4 GB RAM.
Technology    Ink
Technology Logo, Print 01    AHID/dd10df59ca167ea78eeef7e5b2e698a795b131d7
Technology Logo, Print 02    AHID/b504e7ab8574fb23f7819bf5367141da989eb4bc
Technology Logo, Print 03    AHID/95142d0f2ba4b6d45a004d774f64f5f379ea070e
Technology Logo, Print 04    AHID/e5bbc17ff8bd420d476680a16286b14b6d530dde
Technology Logo, Print 05    AHID/93a68b8d94fd3b1ed6cdc04da868ac9d4e2a7fdd
Technology Logo, Print 06    AHID/2f8f66942d9deaefadcb1b41e21cb94f105050b2
Technology Logo, Print 07    AHID/50f2579767f95971e279228282cc0452a86d8bf2

Theoretical Minimum Line Width (imperial)    0.0008 in (PDF addressable @ 1200 dpi)
Theoretical Minimum Line Width (metric)    0.02 mm (PDF addressable @ 1200 dpi)

Weight (imperial)    159 lb

Weight (metric)    72 kg

What Is In The Box    HP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindle, setup poster, introductory information, warranty, power cords, label kits


Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Local printing requires mobile device and printer to be on the same network (usually Wi-Fi access points bridge wireless to wired connections) or have a direct wireless connection. Wireless performance is dependent on physical environment and distance from access point. Wireless operations are compatible with 2.4 GHz operations only. Remote printing requires an Internet connection to an HP web-connected printer. Wireless broadband use requires separately purchased service contract for mobile devices. Check with service provider for coverage and availability in your area.
