HP DesignJet T830 Multifunction Printer

Communicate more effectively—no learning curve needed—with print plus scan and copy capabilities

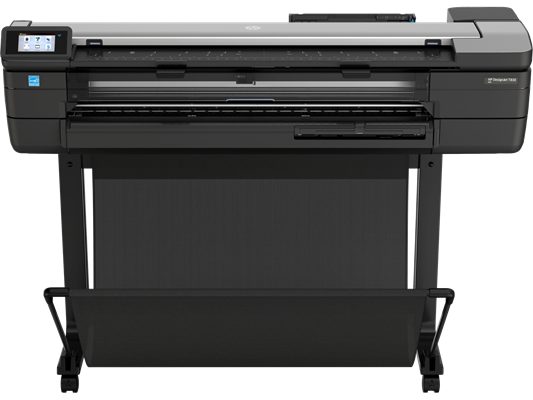

Designjet T830 MFP center facing - Smaller

HP DesignJet T830 Multifunction Printer Series

Architects/engineers and construction teams working in the office or at the job site need convenient multifunction printing, scanning, and copying of technical documents to enable effective communication.

Immediately update all your partners on project review results with the most compact large-format MFP. Intuitive, convenient print/scan/copy and HP DesignJet print quality helps you communicate effectively and move the project forward.

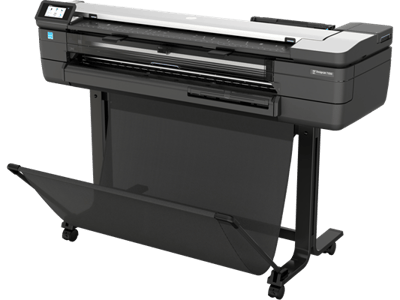

Designjet T830 MFP left facing - Smaller



Fast, agile, intuitive print/scan/copy

Enjoy easy installation in the office, and construction job site with the most compact large-format MFP.

Easily print project sets and PDF documents with HP Click printing software.

Fit your print volume—choose from 130- and 300-ml HP ink cartridges.




HP DesignJet quality and reliability

Get HP DesignJet quality also in small-format sizes—print half-size documents with a 50-sheet A4/A3 input tray.

Smart scanning technology protects originals from damage when scanning and obtains precise colors.

Reinforced design and strong legs for easy transport and use at the job site.



Immediately share meeting results

Use the built-in scanner to copy and distribute sketches and hand-annotated drawings to peers/partners right away.

Easily link your computer, smartphone, or tablet to the printer with Wi-Fi Direct.

No learning curve—with the intuitive design of a single touchscreen, you can scan, copy, and share instantly.

HP DesignJet T830 Multifunction Series

The smart choice for architecture and construction offices ready to evolve

Get a Personalized HP DesignJet T830 Series Quote

Get a bundle with a T830, paper, ink, and more.

HP DesignJet T830 Multifunction Tech Specs

Product Name    HP DesignJet T830

Multifunction Printer series

AIO Functions    Print, copy, scan

Acoustic Power Emissions (active, printing)    6.5 B(A) (operating), <3.4 B(A) (idle)

Acoustic Pressure Emissions    48 dB(A) (operating), <16 dB(A) (idle)

Bit Depth    24-bit/8-bit

Connectivity, Opt    HP USB 3.0 to Gigabit LAN Adapter

Connectivity, Std    Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n

Copier Reduce/enlarge    50 to 400%

Copier Settings    Content type; Lighter/Darker; Background noise removal; Background color removal; Blue print invert; Translucent media; Color; Scan full width; Auto De-skew; Resize; Copy Margins; Quality
Copy Resolution, Color Text and Graphics    Up to 600 x 600 dpi

Copyright Notice    © Copyright 2022 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Dynamic security    Dynamic security enabled printer

Eco Qualified Label 01    ENERGY STAR® certified; EPEAT registered

Ecolabels    ENERGY STAR® qualified

Electromagnetic Emission Standard    Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)

Energy Star Certified    Yes

Environmental Certifications    ENERGY STAR, EPEAT, CE marking (including RoHS, WEEE, REACH). In compliance with WW RoHS materials restriction requirements in China, Korea, India, Vietnam, Turkey, Serbia, and Ukraine.

HP ePrint Capability    Yes

Hard Disk    None

Ink Drop    6 pl (C, M, Y); 12.6 pl (mK)

Ink Types    Dye-based (C, M, Y); pigment-based (mK)

Line Accuracy    ±0.1%[2]

Linear Scan Speed (imperial)    Up to 1.5 in/sec (color, 200 dpi); Up to 4.5 in/sec (grayscale, 200 dpi)

Linear Scan Speed (metric)    Up to 3.81 cm/sec (color, 200 dpi); Up to 11.43 cm/sec (grayscale, 200 dpi)

Manufacturer Warranty    One-year limited warranty. Warranty and support options vary by product, country and local legal requirements.

Max Number Of Copies    Up to 99 copies

Maximum Memory    1 GB

Maximum Optical Density (black)    8 L* min/2.10 D[3]

Maximum Optical Density Footnote (black)    With HP Premium Instant Dry Photo Gloss media with Original HP inks.

Media Handling, Document Finishing    Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter

Media Thickness (by paper path)    Up to 11.8 mil

Media Thickness (imperial)    0.03 in

Media Thickness (metric)    Up to 0.3 mm

Media Thickness Maximum (metric)    0.8 mm

Media Types    Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)

Media Weight Recommended (metric)    60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)

Minimum Line Width (imperial)    0.0028 in (ISO/IEC 13660:2001(E))

Minimum Line Width (metric)    0.07 mm (ISO/IEC 13660:2001(E))

Minimum Line Width Footnote (imperial)    Measured on HP Matte Film

Minimum Line Width Footnote (metric)    Measured on HP Matte Film

Mobile Printing Capability    Wi-Fi Direct and local Wi-Fi connectivity to enable mobile printing via HP ePrint, Apple AirPrint™ and HP Smart App. Supports printing from most smartphones and tablets using these operating systems: Android, iOS

Monthly Printed Pages (facet)    Often

Network Ready    Standard

Non-Printable Area (imperial cut-sheet)    0.2 x 0.2 x 0.2 x 0.2 in

Non-Printable Area (metric cut-sheet)    5 x 5 x 5 x 5 mm

Non-operating Humidity Range    0 to 95% RH

Non-printable Area Roll Media (imperial)    0.2 x 0.2 x 0.2 x 0.2 in

Non-printable Area Roll Media (metric)    5 x 5 x 5 x 5 mm

Operating Humidity Range    20 to 80% RH
Operating Temperature Range (celsius)    5 to 40ºC

Operating Temperature Range (fahrenheit)    41 to 104ºF

Power Consumption Description    35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)

Power Supply Required    Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max

Primary Applications (facet)    Office documents and presentations; Engineering and construction documents

Print Cartridge, Color(s)    Cyan, magenta, yellow, matte black

Print Cartridges, Number    4 (C, M, Y, mK)

Print Head Nozzles    1376

Print Heads    1 (C, M, Y, mK)

Print Languages, Standard    HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF

Print Resolution Color (best)    Up to 2400 x 1200 optimized dpi

Print Technology    HP Thermal Inkjet
Printer Drivers Included    HP-GL/2, HP-RTL drivers for Windows; Raster driver for macOS and Windows

Printing Path    Wi-Fi Direct to enable mobile printing via HP ePrint, Apple AirPrint and HP Smart app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, print from USB pen drive

Product Logos    AirPrint; ENERGY STAR; EPEAT; IPv6 Ready Phase 2 (Gold); Mac; Wi-Fi CERTIFIED; Windows 10 Compatible

Product Type (facet)    Office Printers for CAD and GIS

Roll External Diameter    100 mm

Roll External Diameter (imperial)    3.9 in

Roll Maximum Input    1

Scan File Format    JPEG, PDF, TIFF

Scan Input Modes    Scan to email, scan to cloud (through HP Smart app), network, USB, computer, mobile

Scan Resolution, Enhanced    600 dpi

Scan Resolution, Optical    Up to 600 dpi

Scan Speed Footnote    Measured at 200 dpi in color and grayscale

Scan Type    Sheetfed, CIS (Contact Image Sensor), media jam detection sensor, front feed scanning method

Segment (facet)    Business

Software Included    HP Click, HP Smart app, HP Support Assistant, HP Print Preview for Windows, HP DesignJet Utility for macOS and Windows

Standard Memory    1 GB

Storage Temperature Range (celsius)    -25 to 55ºC

Storage Temperature Range (fahrenheit)    -13 to 131ºF

Sub Brand (facet)    DesignJet

Subcategory (facet)    Large format

Supported Applications, Primary    Line drawings; Renderings; Presentations

Sustainable Impact Specifications    Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered

Taxonomy (facet)    Large Format Printers/ Plotters

Tech Spec Footnote 01    [1] Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks.

Tech Spec Footnote 02    [2] ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.

Tech Spec Footnote 03    [3] With HP Premium Instant Dry Photo Gloss media with Original HP inks.

Technology    Ink

Theoretical Minimum Line Width (imperial)    0.0008 in (HP-GL/2 addressable)

Theoretical Minimum Line Width (metric)    0.02 mm (HP-GL/2 addressable)

What Is In The Box    HP DesignJet T830 MFP, printhead, ink cartridges, printer stand, spindle, quick reference guide, setup poster, startup software, power cord, refeed preventers



Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Local printing requires mobile device and printer to be on the same network (usually Wi-Fi access points bridge wireless to wired connections) or have a direct wireless connection. Wireless performance is dependent on physical environment and distance from access point. Wireless operations are compatible with 2.4 GHz operations only. Remote printing requires an Internet connection to an HP web-connected printer. Wireless broadband use requires separately purchased service contract for mobile devices. Check with service provider for coverage and availability in your area.
