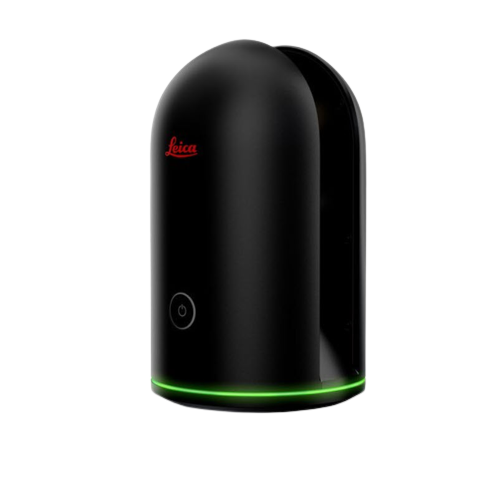

Leica BLK360 LiDAR Scanner

Speed

On-the-fly image and point cloud processing in the field and auto-registration office workflows with Cyclone REGISTER 360.

Ease-of-Use

Push-button scanning automatically stitches and registers captured scan data for in-field visualization in the mobile version of Cyclone FIELD 360 and ReCap Pro. Then transfer the data seamlessly to Cyclone REGISTER 360 via Wi-Fi for final processing.

Simplified Data Collection

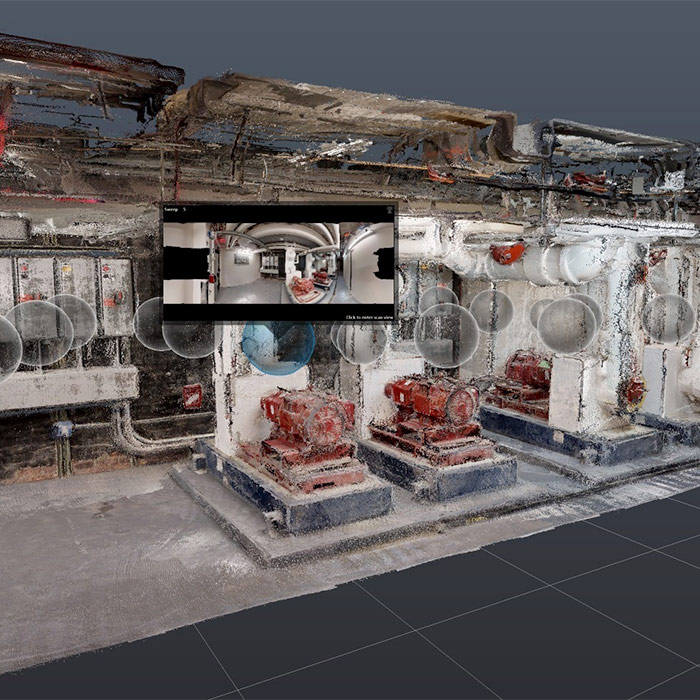

Two-in-one 360º image documentation and laser scan data.

Portability

Flexibility to scan wherever, whenever with the small, lightweight imaging laser scanner that fits into a messenger bag.

Cloud Connectivity

Better collaboration and virtualization with cloud sync.

Interoperability

Fully compatible with the Lecia Geosystems High-Definition Surveying (HDS) software suite and Autodesk’s design solutions.

PHYSICAL  SPECS

All specifcations are subject to change without notice.

All accuracy specifcations are one sigma unless otherwise noted.

* at 78% albedo

GENERAL

Imaging scanner 3D scanner with integrated spherical imaging system and thermography

panorama sensor system

DESIGN & PHYSICAL

Housing Black anodized aluminium

Dimensions Height: 165 mm / Diameter: 100 mm

Weight 1kg

Transport cover Hood with integrated foorstand

Mounting mechanism Button-press quick release

OPERATION

Stand-alone operation One-button operation

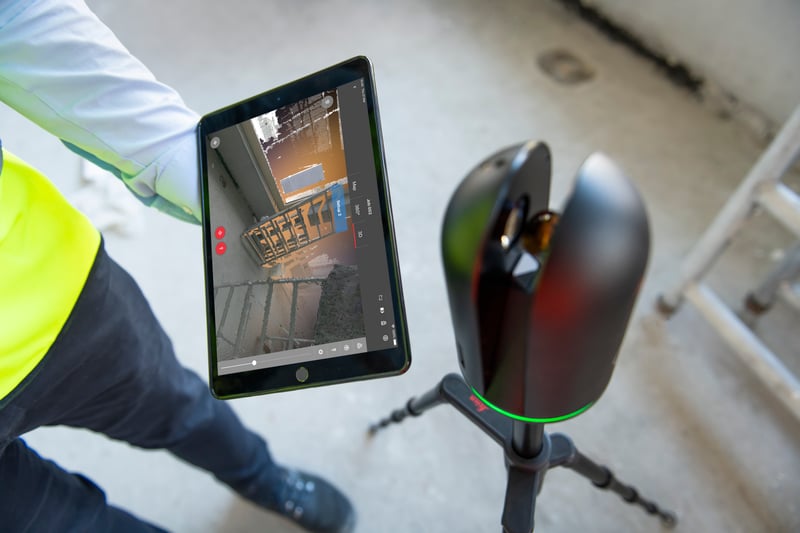

Remote operation iPad app, Apple iPad Pro® 12.9”/iOS 10 or later

Wireless communication Integrated wireless LAN (802.11 b/g/n)

Internal memory Storage for > 100 setups

Instrument orientation Upright and upside down

POWER

Battery type Internal, rechargeable Li-Ion battery (Leica GEB212)

Capacity Typically >40 setups

DATA ACQUISITION

Live image and scanned data streaming

Live data viewing and editing

Automatic tilt measurements

SCANNING

Distance measurement system High speed time of fight enhanced by Waveform Digitizing (WFD) technology

Laser class 1 (in accordance with IEC 60825-1:2014)

Wavelength 830 nm

Field of view 360° (horizontal) / 300° (vertical)

Range* min. 0.6 - up to 60 m

Point measurement rate up to 360’000 pts / sec

Ranging accuracy* 4mm @ 10m / 7mm @ 20m

Measurement modes 3 user selectable resolution settings

IMAGING

Camera System 15 Mpixel 3-camera system, 150Mpx full dome capture, HDR, LED fash Cali-brated

spherical image, 360° x 300°

Thermal Camera FLIR technology based longwave infrared camera

Thermal panoramic image, 360° x 70°

PERFORMANCE

Measurement speed < 3 min for complete fulldome scan, spherical image & thermal image

3D point accuracy* 6mm @ 10m / 8mm @ 20m

ENVIRONMENTAL

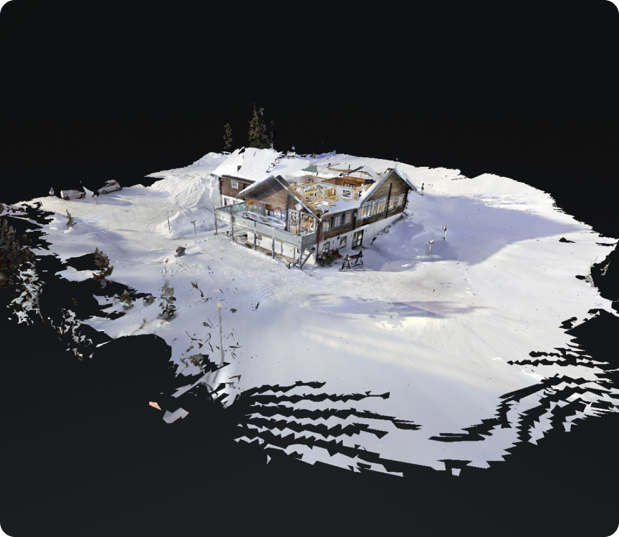

Robustness Designed for indoor and outdoor use

Operating temperature +5 to +40° C

Dust/Humidity Solid particle/liquid ingress protection IP54 (IEC 60529)
