    Canon TA-20 | 24-inch Wide Format Printer

    A large-format printer that is affordable for new, entry-level users

    Print your own large-format drawings, posters, and more.

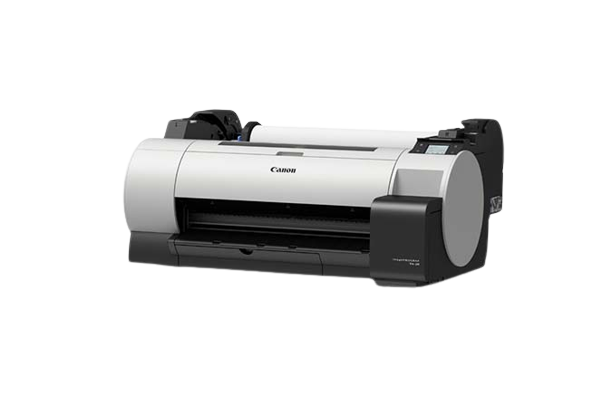

    imageprograf-ta-20-img2-675x450

    With uncompromising quality, this multipurpose 24" desktop printer, offers a cost-efficient, easy-to-use solution built to stimulate workflow and productivity for small businesses and first-time large format print users.

    Print More Out of the Box

    The TA Series ship with 164% more ink than the comparable HP and 157% more ink than the comparable Epson currently offer. 330ml ink in total - over a $250 value!

    Low Cost of Operation

    Economy Print Mode (Fast (Q5)) allows for up to 40% less ink to be used during printing than standard mode Q3 - helping to lower your operation costs.

    Unparalleled Speed

    Print 104 24 x 36 posters per hour.

    Print Outdoor Posters

    Unlike typical inkjet printers, the TA Series use pigment ink to produce weather-resistant posters.

    The Perfect Print

    With Canon's advanced Air Feeding System, paper is kept flat during printing - helping to make consistent prints every time

    Security Feature

    The TA Series large-format printers come equipped with several security features designed to help prevent leaks of confidential information:

    802.1x: Helps ensure information is secure when passing over a network by providing authentication to devices attempting to connect to the network.

    SSL/TLS: Allows sensitive information being sent via an internet connection to be sent securely for data being passed between two systems

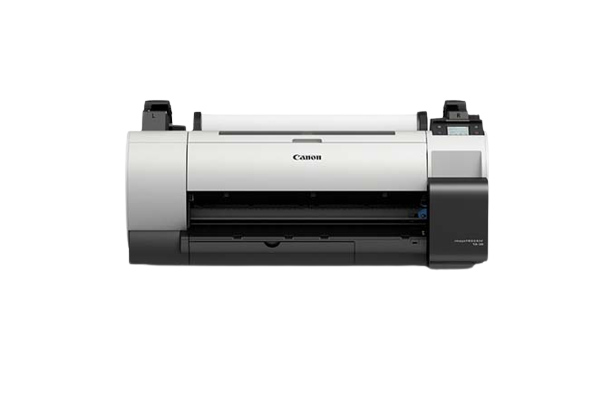

    imageprograf-ta-20-img1-675x450

    Canon TA-20 Specifications

    Printer Type 5-Color 24-inch Printer

    Number of Nozzles Total: 15,360

    MBK: 5,120 nozzles

    C, M, Y, BK: 2,560 nozzles each

    Nozzle Pitch 1200 dpi

    Non-firing nozzle detection and compensation

    Print Resolution (Up to) 2400×1200dpi (Max)

    OS Compatibility Windows® 7, 8.1, 10 (32/64bit)

    Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)

    Macintosh OS X v10.10.5-v10.12x

    Standard Interfaces USB 2.0 High-Speed

    10/100/1000 Base-T/TX

    Wireless LAN (IEEE 802.11 b/g/n)

    Ink Droplet Size Minimum 5 picoliter

    Ink Capacity 55 ml per color

    Ink Droplet Size Pigment Ink

    Color Set Pigment: Matte Black, Black, Cyan, Magenta, Yellow

    Buffer Ram 2 GB (Physical)

    Media Width Cut Sheet - 8"- 17"

    Roll Feed - 8" - 24"

    Media Thickness 0.07-0.8mm

    Maximum Media Roll Diameter 5.9" (150mm)

    Borderless Printing Width 8" - 24"

    Paper Feed Method Roll Feed: One Roll, Top-loading, Front Output

    Cut Sheet: Top Loading, Front Output

    Languages SGRaster, HPGL/2, HP-RTL, JPEG

    Noise Level Approx Operation: 42 dB (A)

    Standby: 35 dB (A) or less

    Acoustic Power: 5.8 Bels

    Physical Dimensions 18" x 39" x 30" (H x W x D)

    Weight approx.82 lbs (roll holder included, no inks, no print heads)

    Power Source AC 100-240V (50-60Hz)

    Power Consumption Maximum: 52W or less

    Standby 3.6W or less

    Power Off: 0.3W or less (Compliant with Executive Order)

    Operating Environment Temperature: 59°-86° F (15°-30° C)

    Relative Humidity: 10-80% (No Condensation)

    User-replaceable items Print Head (PF-06)

    Maintenance Cartridge (MC-31)

    Ink Tanks (PFI-030)

    Cutter Blade (CT-08)

    Software Included: TA Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor



    Download the TA-20 spec sheet

    Get Quote

    See the Printing Costs of a Canon iPF imagePROGRAF Printer

    Download our Canon Cost Analysis Sheets and get an idea of what it cost per page or per square foot to use a Canon iPF plotter. Knowledge is power when planning your Total Cost of Operation (TCO).



    Download the Canon Cost Analysis Sheets

    Have questions? Please contact one of our wide-format specialists.

    Request a Consultation
