Matterport Camera Pro3 LiDAR Series

A digital twin platform for architecture, engineering, construction, or real estate



Get Quote

Quickly capture 360° pictures for 3D tours or visual walkthroughs

Scan in any light, indoors or outdoors

Document quickly, collaborate effectively

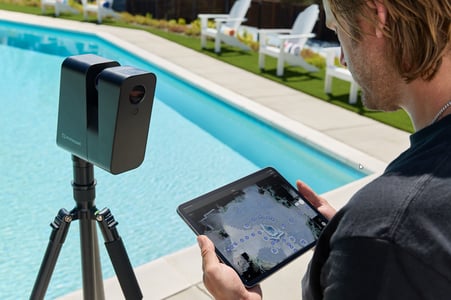

MatterPort-Poolside_1154_jw_v3



[ Shop now for Pro3 3D Camera ]

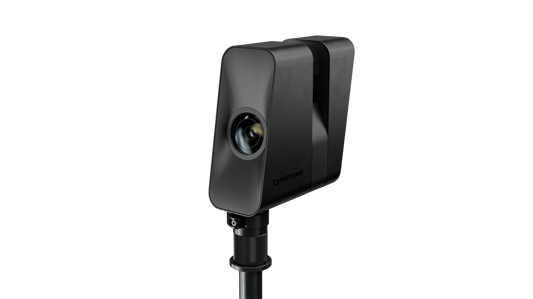

The Pro3 is a laser-powered  LiDAR scanner that captures data in 360° with superb quality.

The 20MP sensor with a custom 12-element lens covers an ultra-wide angle, producing accurate, detailed digital twins.

No manual stitching of scans is needed, the Matterport digital twin technology does it for you.

The Pro3 is fast, suitable for large areas, and works outdoors regardless of lighting conditions.

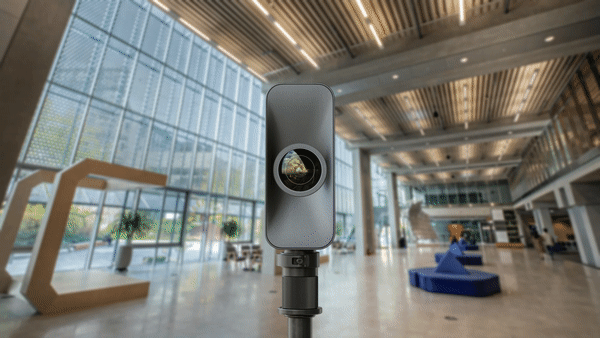

Pro3_Spin_1



[ Shop Now ]



Create virtual 3D models

Scan and capture your spaced and convert them into virtual 3d models for digital tours, analysis, and even VR presentations.



Connect to other services

Using the Matterport API you can connect with Google Street View, and other services such as real estate, or modeling websites.



Work with digital floorplans and surveys

Quickly generate floorplans from existing spaces. Use the Matterport App and cloud service to take measurements and tag details.



Increase your scanning power

Matterport camera Pro2  users can work in tandem with a Pro3 on the same model to increase range, point density, and accuracy.

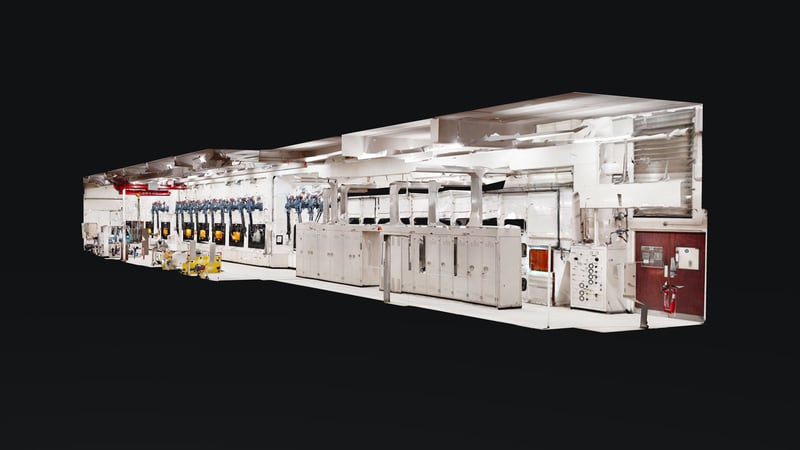

MP_Facilities-dollhouse



Faster As-Built Surveys

Capture as-built data in a matter of minutes—far faster than manual methods and more quickly than terrestrial LiDAR scanners—and generate shareable digital twins. Export dimensional information into CAD and make it easier to start design proposals faster than ever.


Level up your Matterport Subscription

The Pro3 LiDAR camera requires that you have a Professional plan or higher Matterport subscription.



Scanning outdoors

Because the Pro3 users LiDAR, sunlight is no longer an issue. And, the upgraded camera and software allows one single, high-quality model for full-Sun captures. This is also greatly beneficial for capturing digital twin data from large areas including exteriors, stadiums, and more.



Pro3 accuracy

The Pro3 has an error rate of around 20mm at a 10 meter range. There are many factors that go into determining scanning accuracy, depending on the use of the model.



Collect more scan positions

The exact number of scan positions is dependent on the power and storage of the mobile device that you are using as your scan controller for your Matterport Pro3. The more free memory and resources the device has, the greater the number of scan points you can gather.



Scanning speed

Each 360 degree rotation takes less than 20 seconds to complete. For indoor scans, you can follow the same best practices for scanning on the Pro2. For outdoor scanning, or capturing large spaces, the increased range of the Pro3 captures more data per scan. It is advised not to exceed 8m distance between scan setups for outdoor scans.



Long battery life

A fully charged Pro3 battery lasts about 230 scans.









MATTERPORT CAMERA PRO3 PRODUCT SPECIFICATIONS



Physical Specs

Dimensions (H x W x D): 9.0" x 10.25" x 4.38"

Weight (with rechargeable battery): 6.5 lbs

Storage temperature: 32° to 104° F (0 to 40° C)

Operation temperature: 50° to 90° F (10 to 32° C)



Connectivity

Wireless Connections: WiFi to transfer data from camera to iPad through the Capture app. WiFi 802.11 b/g/n/ac 5 GHz.

GPS: Included

Mounting Connection: Femaile 3/8"-16 and, in B-series and later, Arca-Swiss-type QR plat, permanently installed.



Matterport Capture Tech - Girl Scaning Outside



Electrical

Input voltage: 15V DC - Only use charger included with camera

Battery capacity: About 8 hours (continuous use) via 2 packs. 7900mAh-5100mAh, at 14.4 V

Charge time: 4.5 hours



Capture Performance

Camera Warmup Time: About 57 seconds

Capture Resolution: 2K square per skybox face

Capture Time per Scan: 20 seconds

Transfer times from Camera to iPad: 16 seconds

Aligning/Processing Time on iPad: About 10 seconds. Maximum of 25 seconds before triggering and alignment error

Number of exposures per HDR frame: 7 exposures at high dynamic range

Depth Resolution: 10 points per degree (3600 points at equator, 1800 points at meridian, about 4 million points per panographic image)

Output Pano Pixels: 33.6 MP, equirectuangular. For internal processing only.
